ACO Gully 218 - fixed and adjustable height gullies

ACO Gully is available in a number of versions featuring different sizes, flow rates, grate designs and outlet diameters to suit various applications. ACO Gully 218 is typically suited to commercial kitchen applications and uses grates 300 x 300mm.

ACO Gully 218 - Gully Body parts list

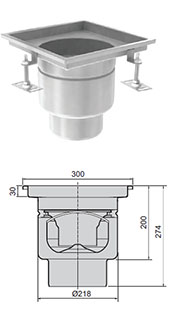

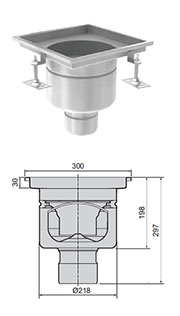

Fixed height body
  Description S/S Grade Part No. JPG DWG Revit Spec Info

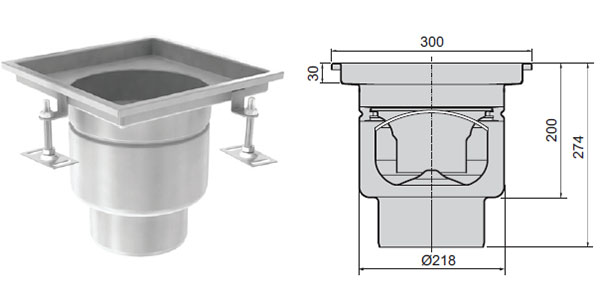

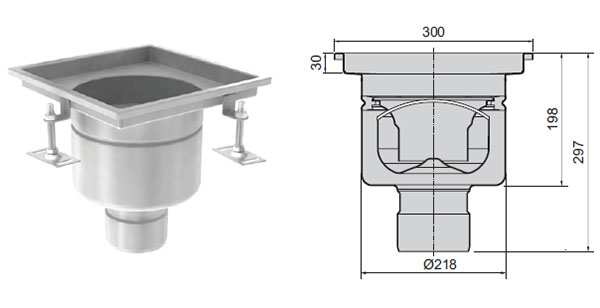

gully 218 fixed height 110 300x300 square
110 OD outlet
without FAT
316 142044 JPG dwg revit PDF
300x300 square
110 OD outlet
with FAT

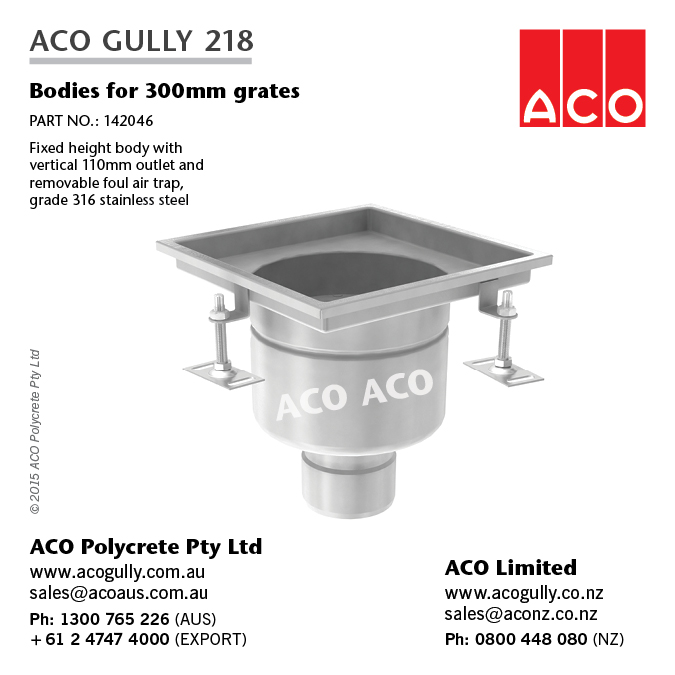

316 142046 JPG dwg revit PDF

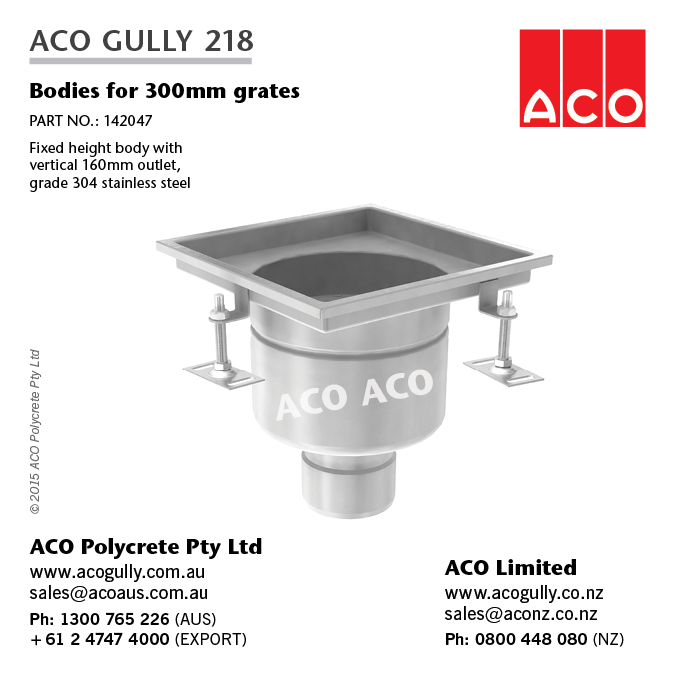

gully 218 fixed height 160 300x300 square
160 OD outlet
without FAT
304 142047 JPG dwg revit PDF
300x300 square
160 OD outlet
without FAT
316 142048 JPG dwg revit PDF
300x300 square
160 OD outlet
with FAT
304 142049 JPG dwg revit PDF
300x300 square
160 OD outlet
with FAT
316 142050 JPG dwg revit PDF
Adjustable height body
  Description S/S Grade Part No. JPG DWG Revit Spec Info

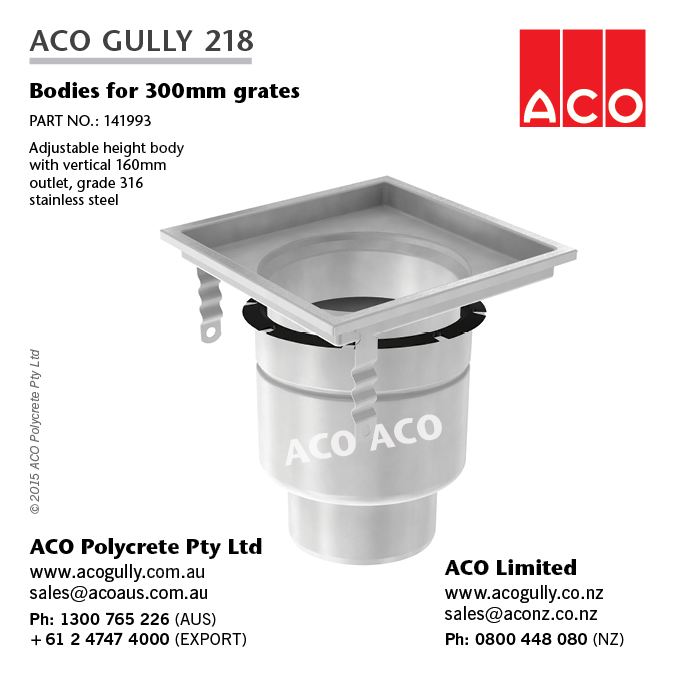

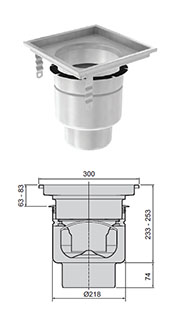

gully 218 adjustable height square 300x300 square 160 OD outlet without FAT 316 141993 JPG dwg revit PDF

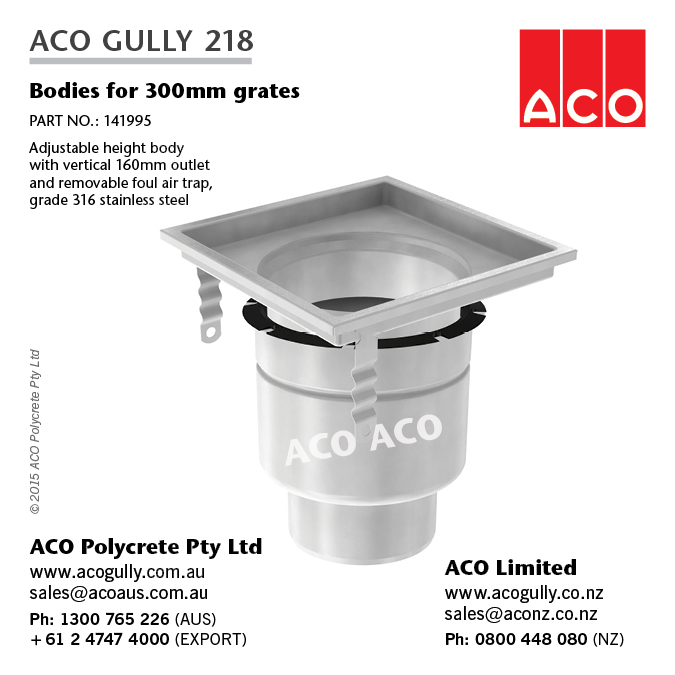

300x300 square 160 OD outlet with FAT 316 141995 JPG dwg revit PDF

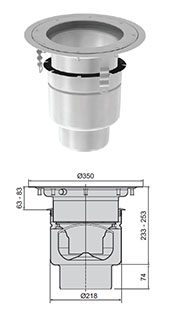

gully 218 adjustable height round 300 dia. round - vinyl 160 OD outlet without FAT 316 141997 JPG dwg revit PDF
300 dia. round - vinyl 160 OD outlet with FAT 304 141998 JPG dwg revit PDF

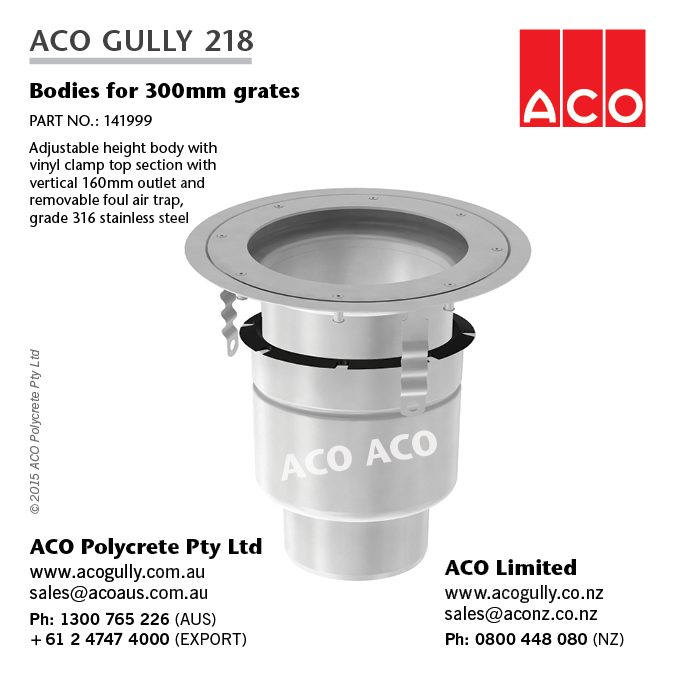

300 dia. round - vinyl 160 OD outlet with FAT 316 141999 JPG dwg revit PDF

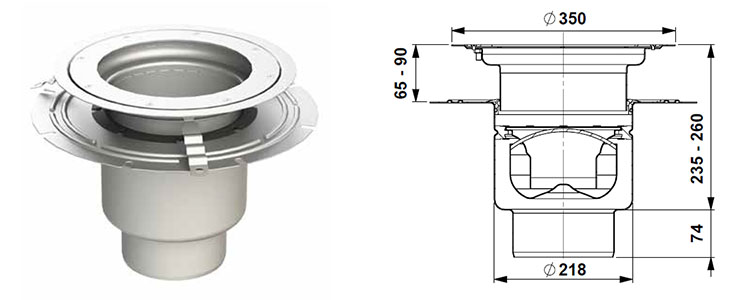

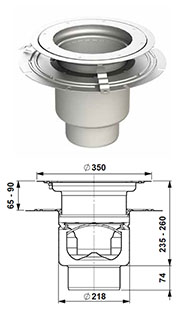

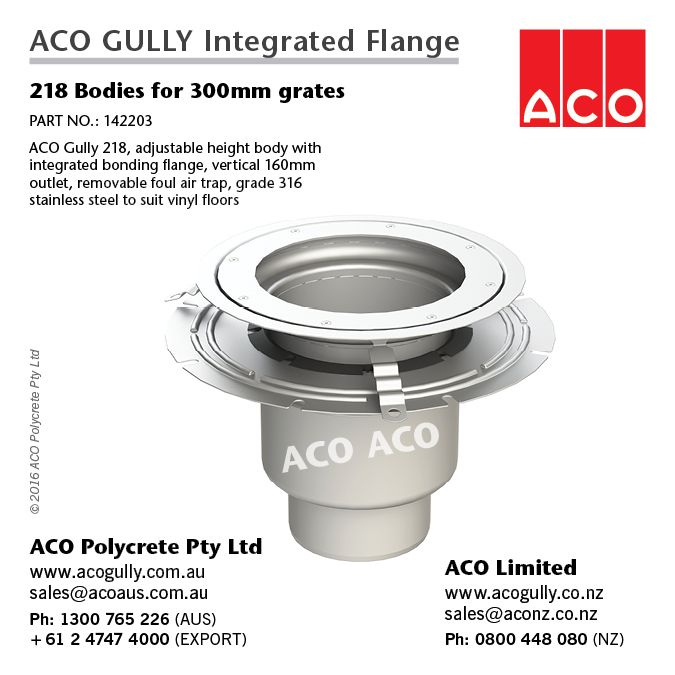

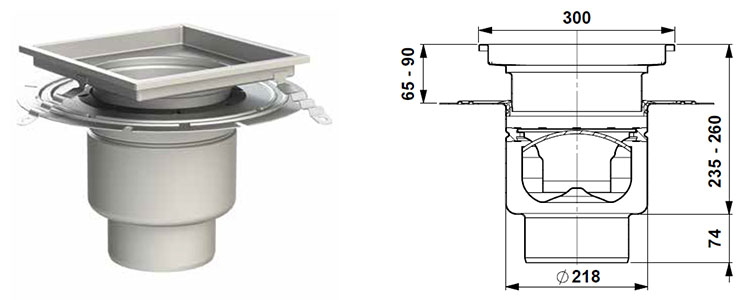

Adjustable height body with bonding flange
  Description S/S Grade Part No. JPG DWG Revit Spec Info

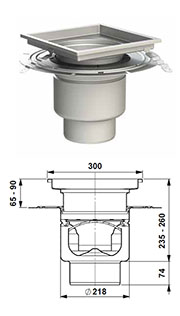

gully 218 adjustable height with bonding flange square 300x300 square 160 OD outlet without FAT 304 142196 JPG dwg revit PDF

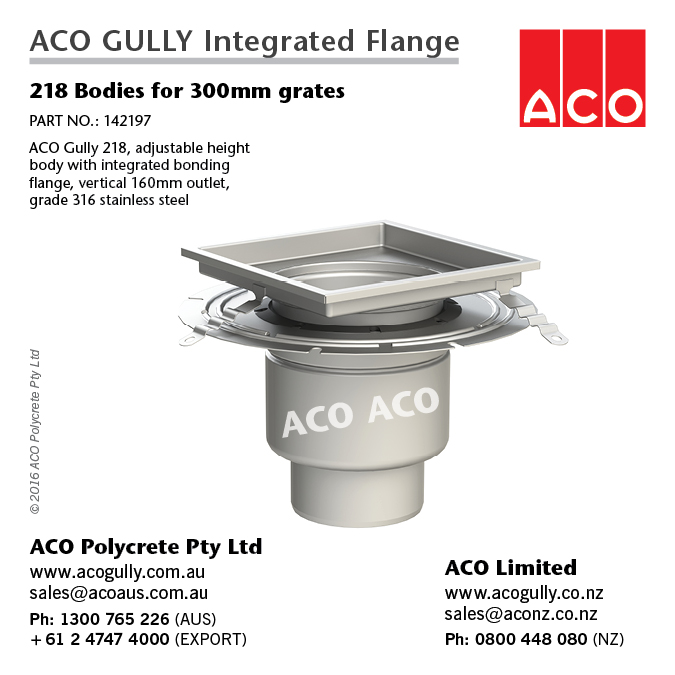

300x300 square 160 OD outlet without FAT 316 142197 JPG dwg revit PDF

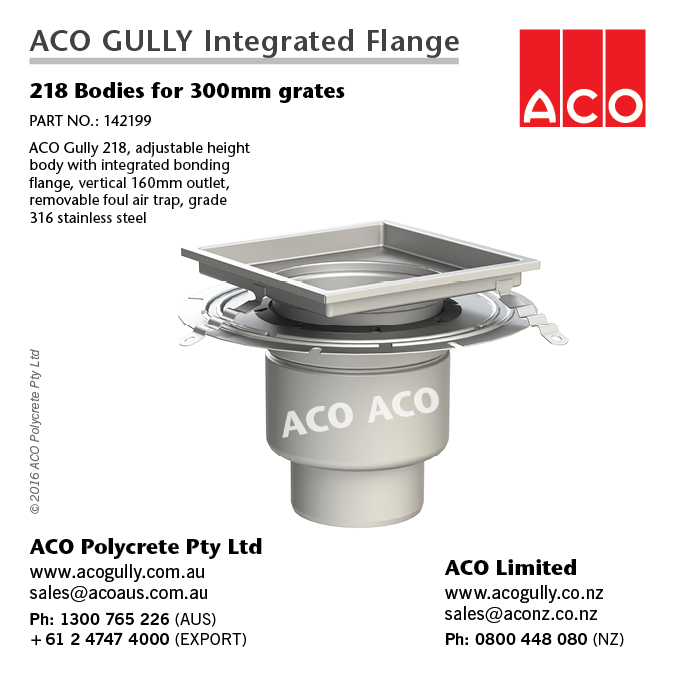

300x300 square 160 OD outlet with FAT 316 142199 JPG dwg revit PDF

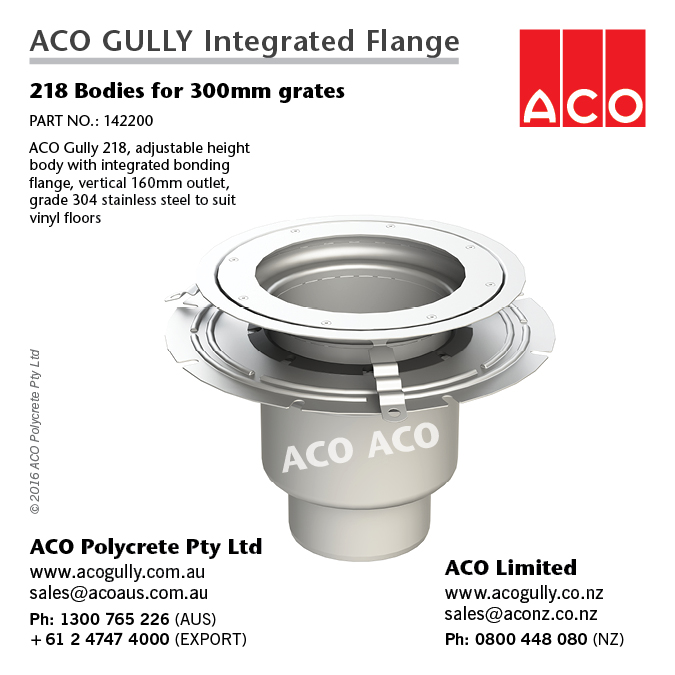

gully 218 adjustable height with bonding flange round 300 dia. round 160 OD outlet without FAT 304 142200 JPG dwg revit PDF
300 dia. round 160 OD outlet without FAT 316 142201 JPG dwg revit PDF
300 dia. round 160 OD outlet with FAT 304 142202 JPG dwg revit PDF
300 dia. round 160 OD outlet with FAT 316 142203 JPG dwg revit PDF

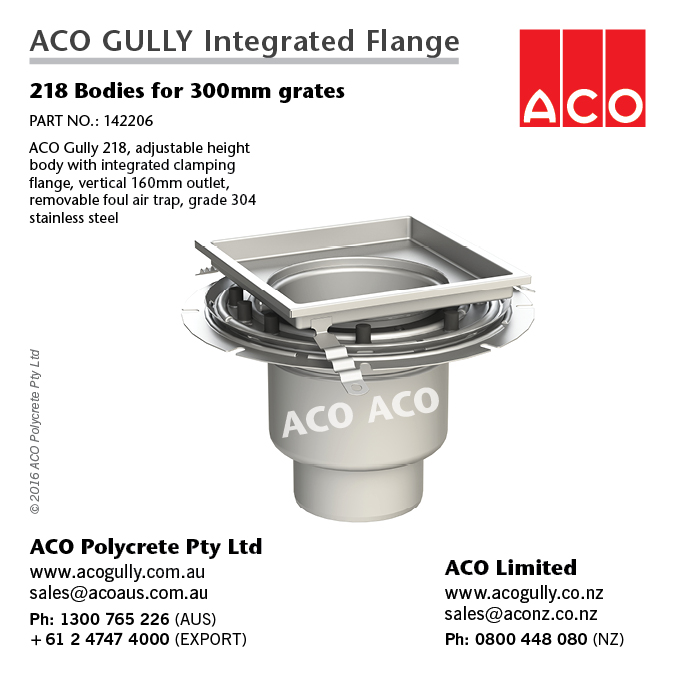

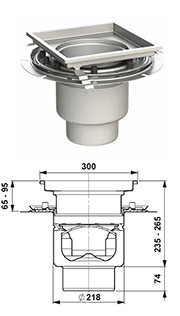

Adjustable height body with clamping flange
  Description S/S Grade Part No. JPG DWG Revit Spec Info

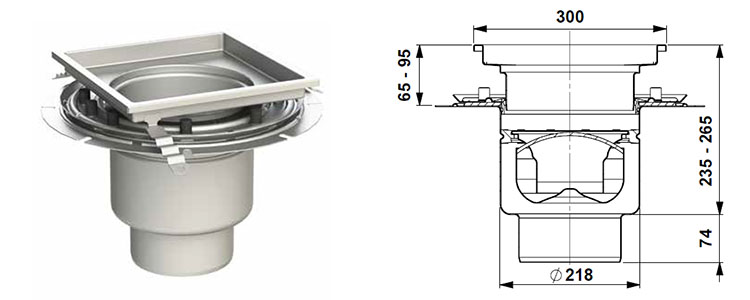

gully 218 adjustable height clamping flange square 300x300 square 160 OD outlet without FAT 304 142204 JPG dwg revit PDF
300x300 square 160 OD outlet without FAT 316 142205 JPG dwg revit PDF
300x300 square 160 OD outlet with FAT 304 142206 JPG dwg revit PDF
300x300 square 160 OD outlet with FAT 316 142207 JPG dwg revit PDF

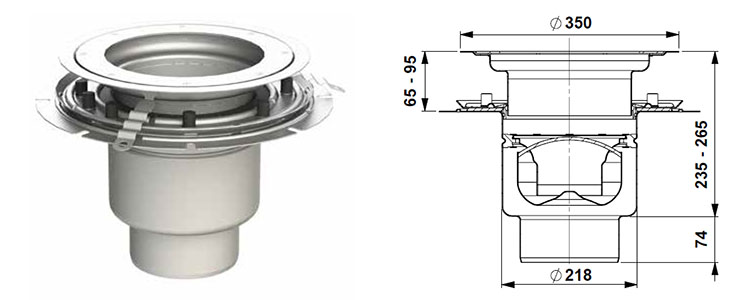

gully 218 adjustable height clamping flange round 300 dia. round 160 OD outlet without FAT 304 142208 JPG dwg revit PDF
300 dia. round 160 OD outlet without FAT 316 142209 JPG dwg revit PDF

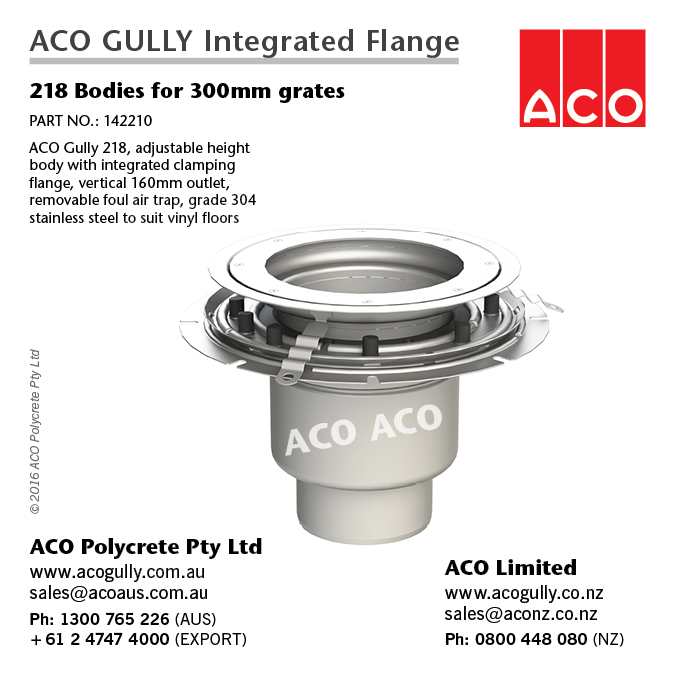

300 dia. round 160 OD outlet with FAT 304 142210 JPG dwg revit PDF

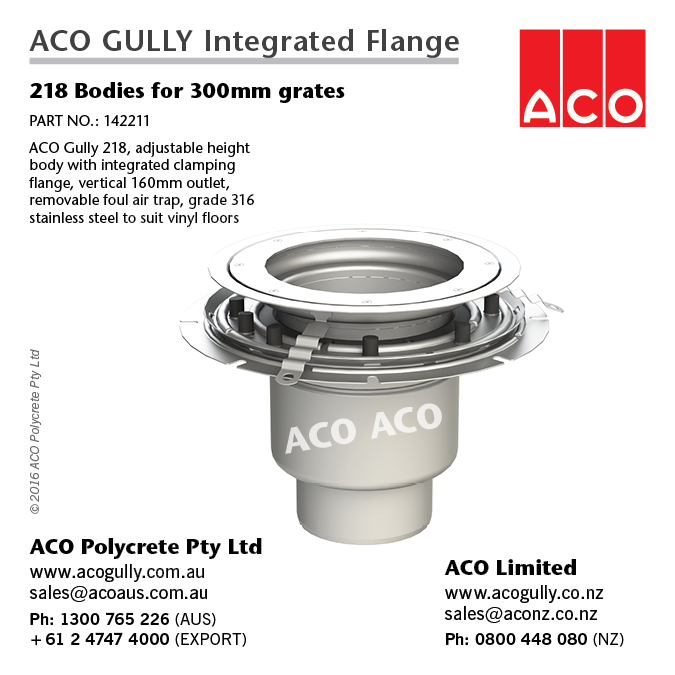

300 dia. round 160 OD outlet with FAT 316 142211 JPG dwg revit PDF

ACO Gully 218 - Grate parts list

 Grate
type
Load Class
EN 1253
Surface
type
S/S
grade
Part No.JPGDWGSpec Info

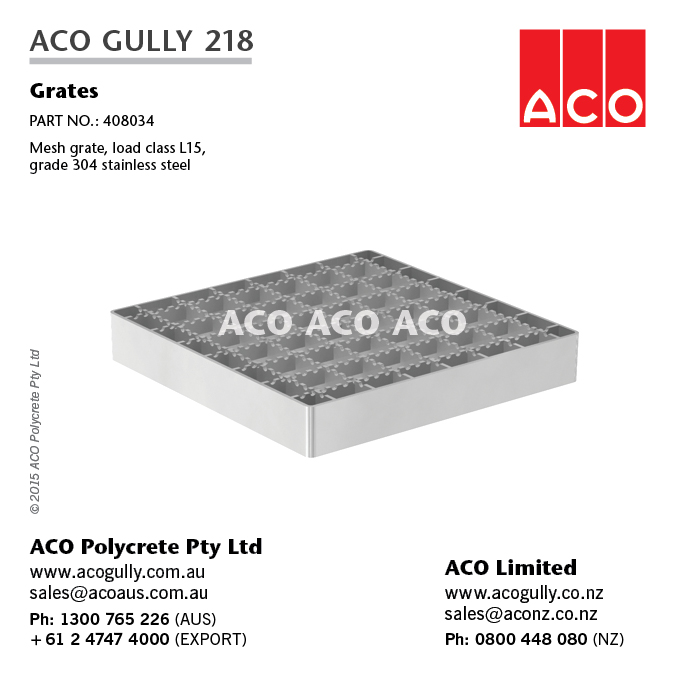

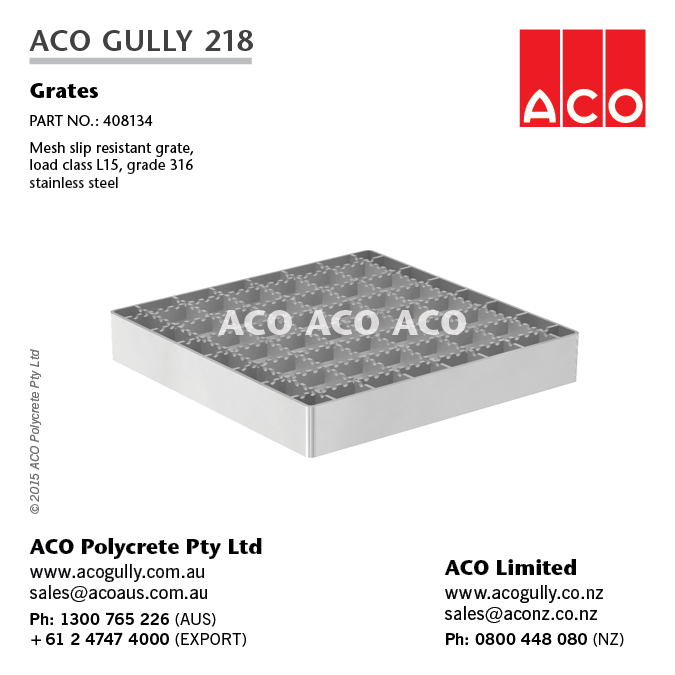

Gully 157 grate - MeshMeshL15Slip resistant304
316
408034
408134
JPG JPGdwg dwgPDF
PDF
Plain304
316
408035
408135
JPG JPGdwg dwgPDF
PDF

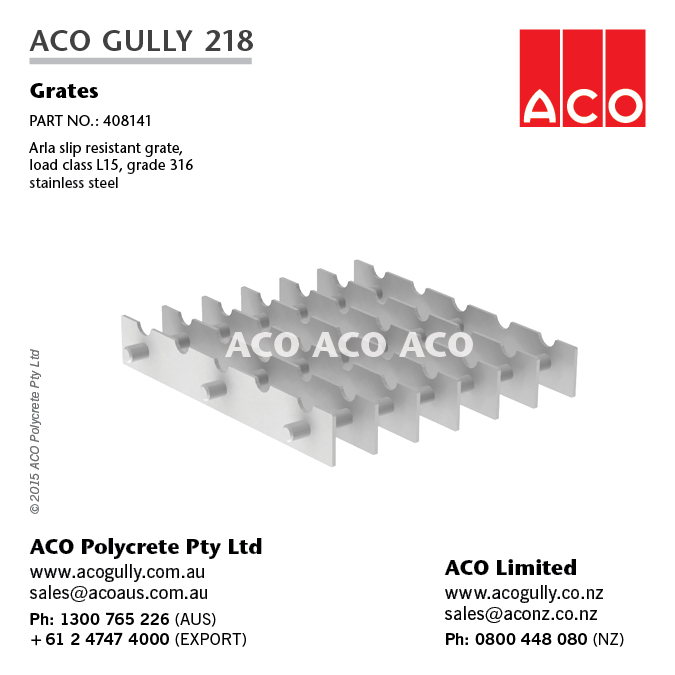

Gully 157 Grate ArlaArlaL15Slip resistant304
316
408041
408141
JPG JPGdwg dwgPDF
PDF

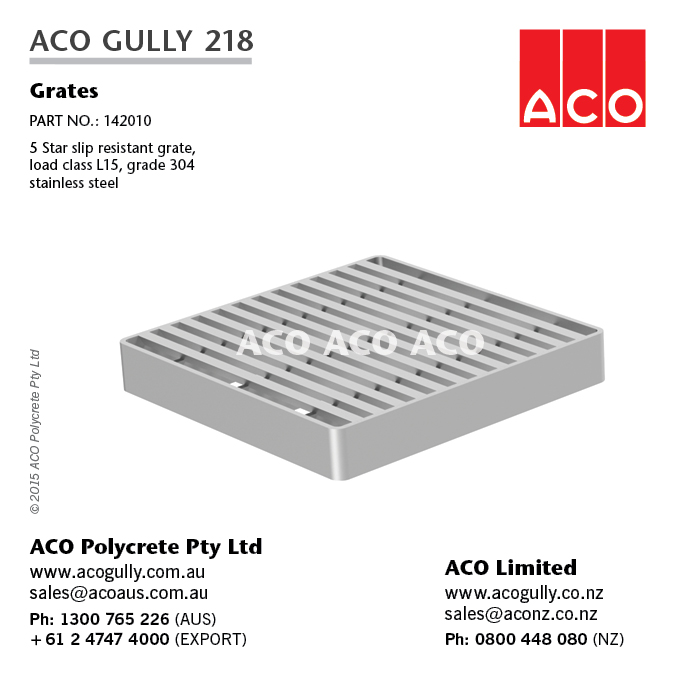

Gully 157 grate - 5 star5 StarL15Slip resistant304142010JPGdwgPDF

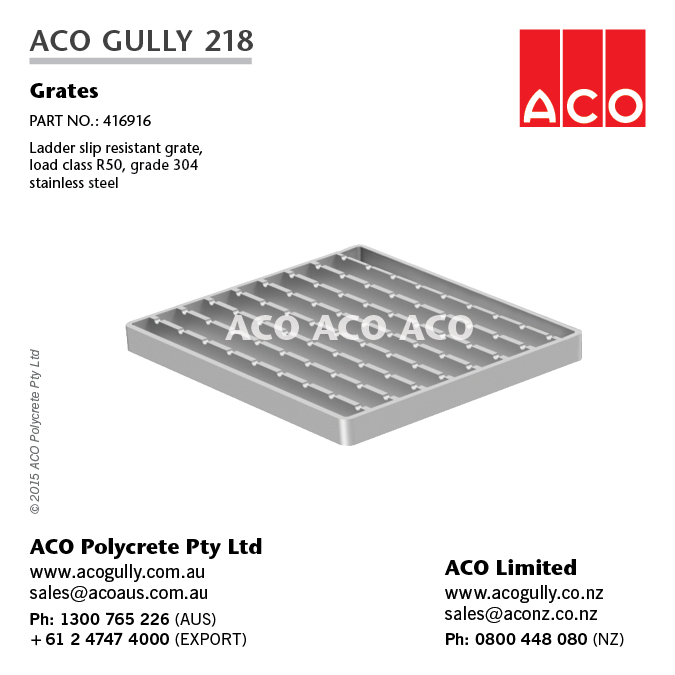

Gully 157 grate - ladderLadderR50 1Slip resistant304
316
416916
416917
JPG JPGdwg dwgPDF
PDF
M125 316408137JPGdwgPDF
D210 1Plain304
316
408045
408145
JPG JPGdwg dwgPDF
PDF
Gully 157 grate - Ladder roundLadderM125Plain304
316
97148
97388
JPG JPGdwg dwgPDF
PDF

1 R50 is referenced in prEn 1253, D210 is referenced in AS 3996. Click here for more information on load classes.

ACO Gully 218 - Accessories parts list

Strainers
  Weight (kg) S/S Grade Part No. JPG

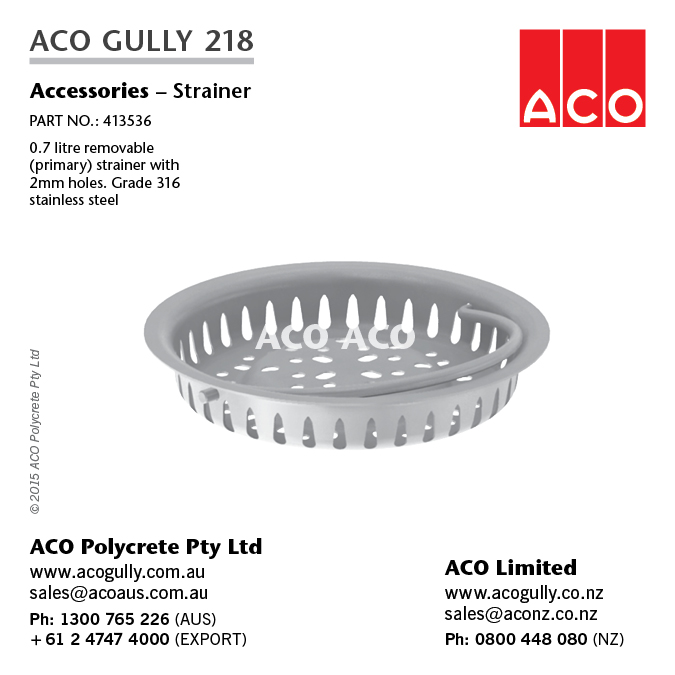

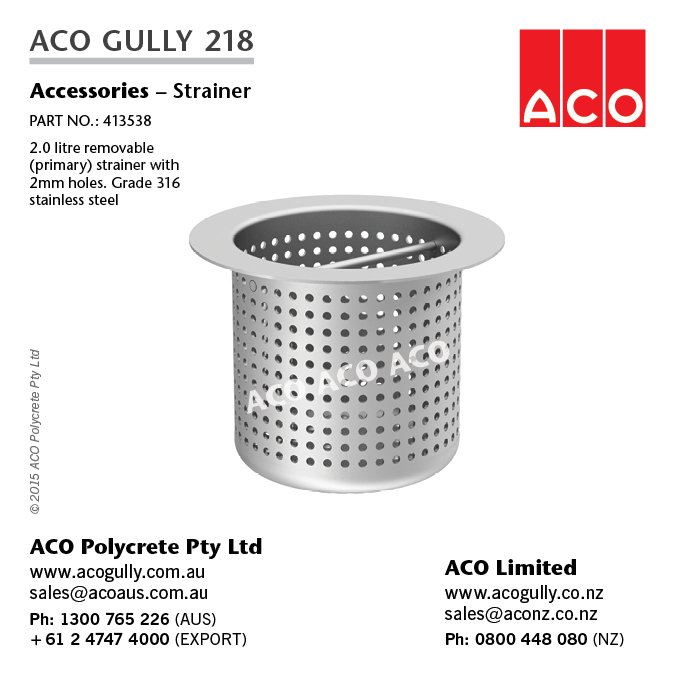

0.7 litre removable (primary) strainer with 2mm diameter holes 0.6 316 413538 JPG
2.0 litre removable (primary) strainer with 2mm diameter holes 0.9 316 413536 JPG
Fixed (secondary) strainer to suit a 110mm outlet 0.1 316 142001 JPG
Fixed (secondary) strainer to suit a 160mm outlet 0.1 316 142008 JPG
Fixed (secondary) strainer to suit a 110mm outlet with 2mm diameter holes 0.1 316 142337 JPG

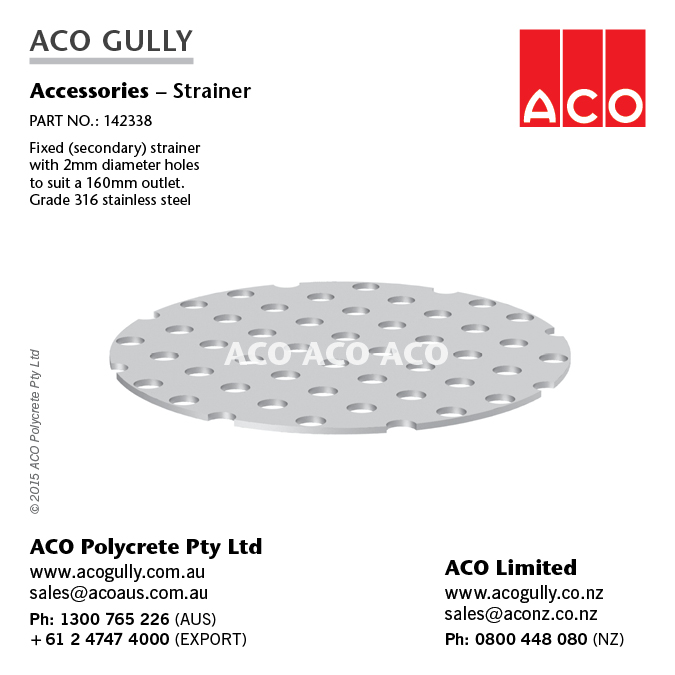

Fixed (secondary) strainer to suit a 160mm outlet with 2mm diameter holes 0.1 316 142338 JPG
Retention Chains
  Weight (kg) S/S Grade Part No. JPG
Retention chain connecting fixed (secondary) strainer to FAT 1 0.1 316 142002 JPG
Retention chain connecting fixed (secondary) strainer to removable (primary) strainer 0.1 316 142003 JPG
Retention chain connecting to FAT 1 to removable (primary) strainer 0.1 316 142004 JPG
Retention chain connecting removable (primary) strainer to grate 0.1 316 142005 JPG
Retention chain connecting removable FAT 1 to grate 0.1 316 142006 JPG
Other
  Weight (kg) S/S Grade Part No. JPG
P-Trap – 110mm diameter 1.3 316 98876 -
P-Trap – 160mm diameter 3.3 316 98878 -
Straight coupling – 110mm diameter, 84mm length 0.4 316 98974 JPG
Straight coupling – 160mm diameter, 84mm length 0.8 316 98976
Waterproof bonding flange (adjustable height gullies only) 3 2.5 304
316
408226
408236

1 FAT denotes – internal foul air trap.
2 Rodding eye (See page 14).
3 From 100mm up to 180 mm will be added to gully depth.
